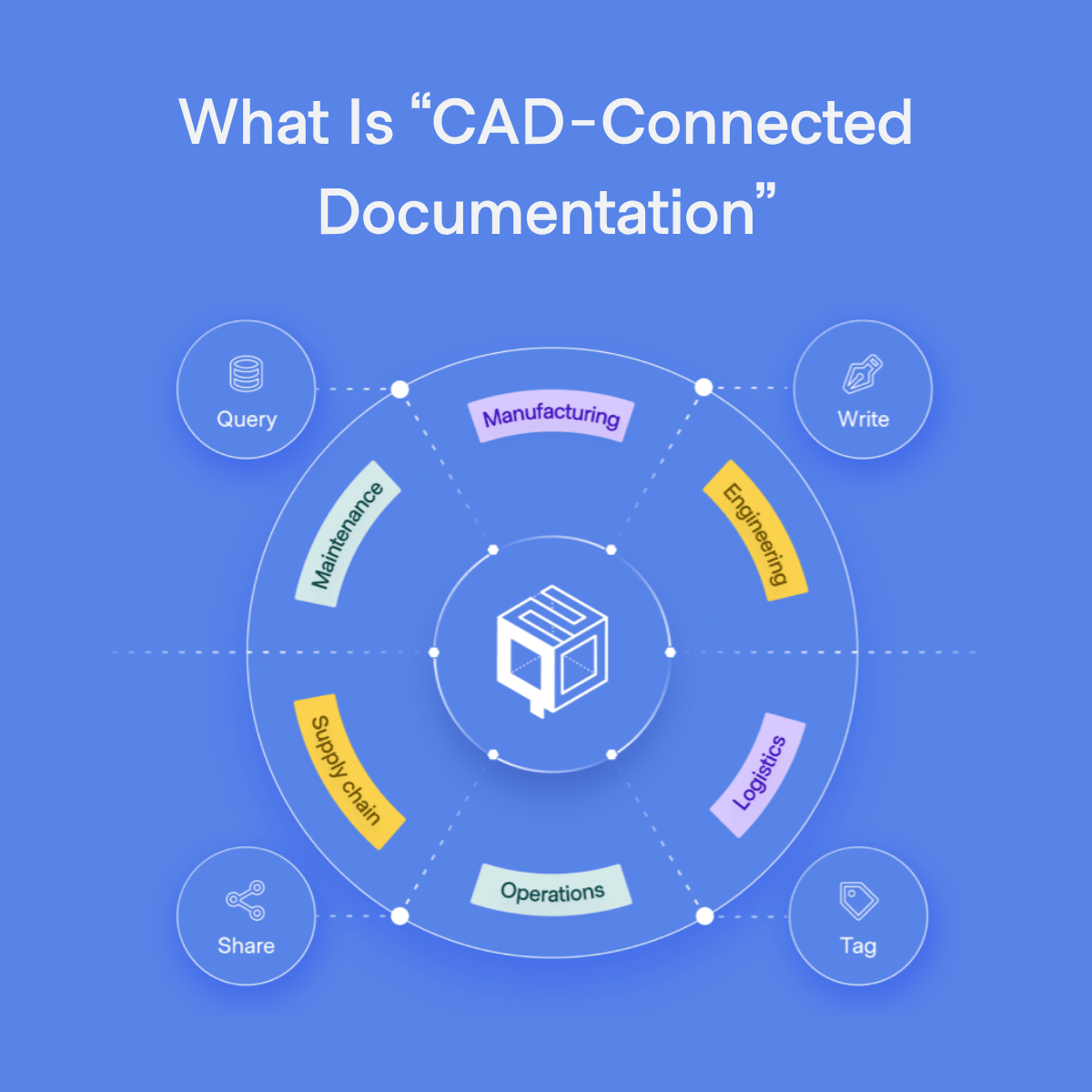

What Is “CAD-Connected Documentation”

CAD-connected documentation is basically what it sounds like… documents connected to your design data.

Documentation today is disconnected from engineering truth. The common workflow is: open up CAD, take screenshots, open up Word or PowerPoint, paste in screenshots, manually type out content, and hope that you make no mistakes. Fast forward (seconds, minutes, hours)—the design has changed (even ever so slightly), and the document is now out of date.

In simple terms: CAD-connected documentation means that when your CAD changes, your documentation updates too.

Why Traditional Documentation Falls Short

Documentation created today by hardware teams is built using traditional tools, like Word and PowerPoint (or by their Google equivalents, Docs and Slides). While Confluence and Notion are generally more collaborative, they still leave teams with the same 3 issues.

1. Content is created manually → time consuming, inefficient use of time
2. Documents are static → reference a specific point in time, rather than current reality
3. Disconnected from the data you are referencing → requires you to copy-paste information

How “CAD-Connected Documentation” Works

CAD tools are rich with structured data, far more than most teams ever use or think to use in their documentation. A CAD-connected platform reads from that source directly, so content isn't typed in by hand; it's pulled automatically.

Here's a sample of what can be extracted to drive documentation:

• Part numbers & descriptions — populate BOMs and work instructions without transcription errors
• Revision history — documents always reflect the current rev, whatever is live in CAD
• Material properties — density, finish, yield strength, and other attributes flow into spec sheets and compliance docs
• Assembly structure — parent-child relationships map directly to assembly sequences and hierarchical BOMs
• Mass & dimensional properties — weight, center of mass, and bounding dimensions surface automatically into datasheets
• Custom attributes — supplier, lead time, approval status, or any metadata your team defines in CAD

Because the connection is live, when an engineer updates a part number, swaps a material, or cuts a new revision, the change propagates automatically—no manual edits, no stale screenshots.

Why It Matters, Even in 2026

Software is increasingly systemizing workflows, moving processes out of static documents and into connected tools—and for good reason. But documentation isn’t going away.

It remains the human-facing layer of manufacturing—the way work is communicated, understood, and executed, especially for downstream teams not sitting inside engineering systems.

Since documentation is here to stay, it must be rebuilt for a modern ecosystem, shifting from manual, static files to auto-generated, dynamic content that stays in sync with your systems.

If your team is still using PowerPoint or Word for work instructions, you’re not alone, but it doesn’t have to work that way. Reach out to learn more hello@buildquarter20.com.
